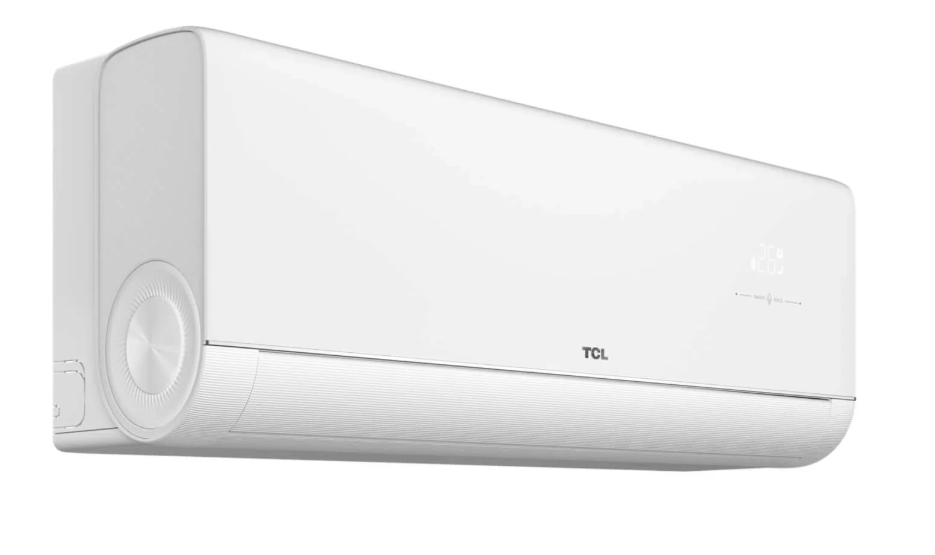

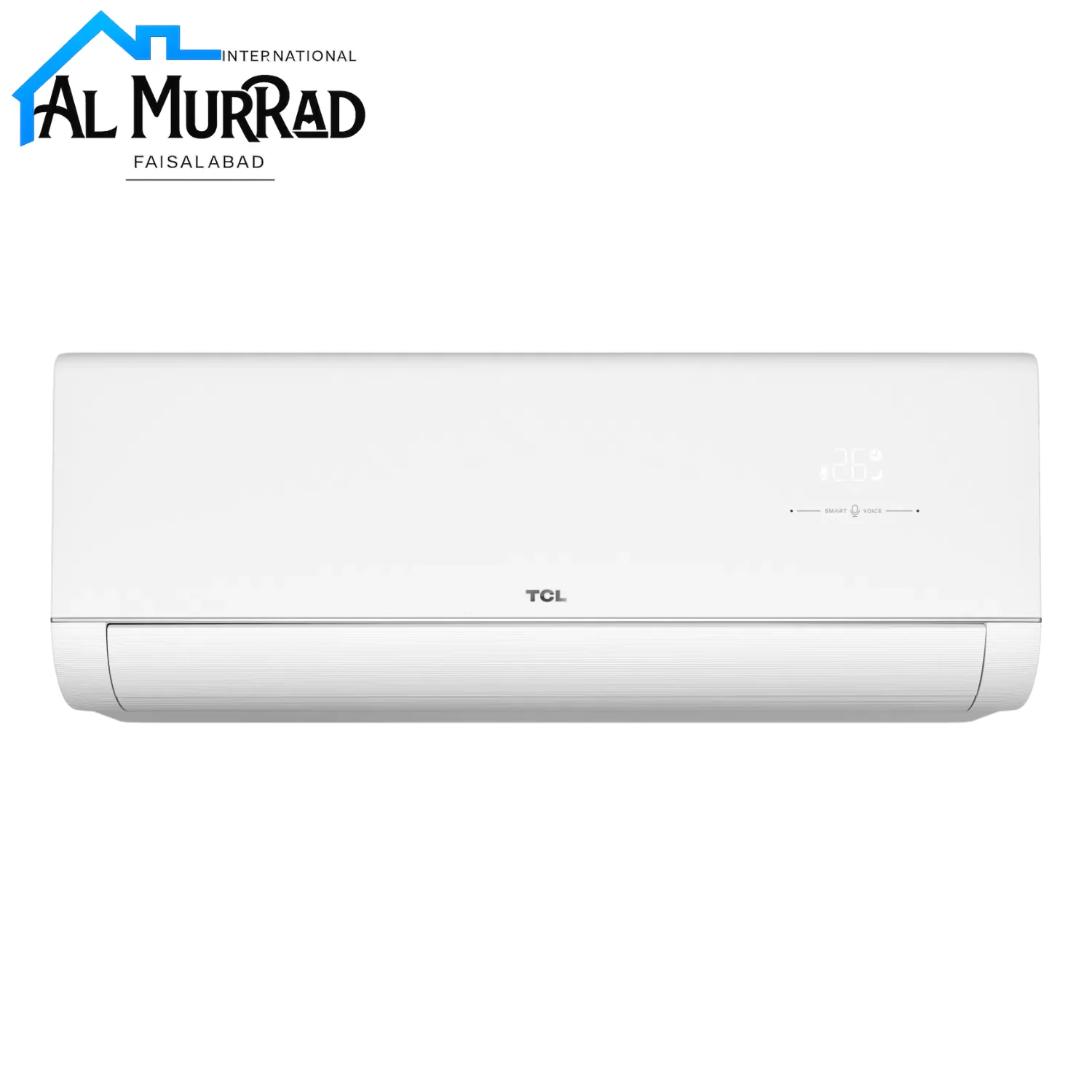

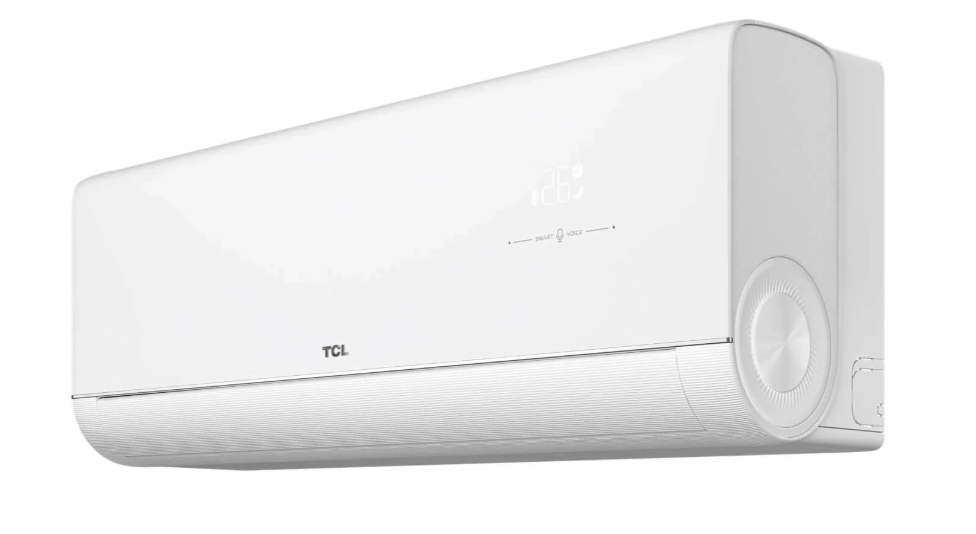

TCL VoxIN Air Conditioner 2.0 TON
S24P9S1
Rs.0.00
Skip to product information
TCL VoxIN Air Conditioner 2.0 TON
Rs.0.00
- · T-AI Energy-saving
- · Gentle Breeze
- · Smart Control with Wi-Fi, TCL Home App, Google Home, and Alexa
- · 56°C Self-cleaning
| Specification | Details |
|---|---|
| Type | Cooling |
| Control Type | Remote Controller |
| Declared Heating Capacity (-10°C) | Cooling Only |
| Backup Heating Capacity (-10°C) | Cooling Only |
| Moisture Removal | 2 Liters/h |
| Indoor Sound Power (S/H/M/L/Mute) | 60 / 54 / 47 / 40 / 36 dB(A) |
| Outdoor Sound Power | 68 dB(A) |
| Indoor Sound Pressure (S/H/M/L/Mute) | 50 / 44 / 37 / 30 / 26 dB(A) |
| Outdoor Sound Pressure | 58 dB(A) |
| Power Supply | 220–240V~ / 50Hz / 1P |
| Power Supply Side | Indoor |
| Voltage Range | 165–265V |
| Refrigerant Type / Charge | R32 / 0.86 kg |
| Outdoor Air Circulation | 4000 m³/h |
| Connecting Wiring (Core × Size) | 4 × 0.75 mm² |
| Power Cord Wiring (Core × Size) | 3 × 2.5 mm² |
| Expansion Device | Electronic Expansion Valve |
| Gas Connecting Pipe | 1/2" |
| Liquid Connecting Pipe | 1/4" |
| Application Area | 27–45 m² |
| Standard Piping Length | 5 m |
| Extra Charging | 25 g/m |
| Max. Refrigerant Pipe Length | 25 m |
| Max. Difference in Level | 10 m |
| Operation Temperature Range | 16–31°C |
| Indoor Ambient Temperature Range | Cooling: 17–32°C |
| Outdoor Ambient Temperature Range | Cooling: -15–53°C |
| Indoor Net Dimensions (W × H × D) | 1096 × 333 × 222 mm |
| Outdoor Net Dimensions (W × H × D) | 927 × 380 × 699 mm |
| Indoor Net Weight | 14 kg |
| Outdoor Net Weight | 35 kg |
| Indoor Packing Dimensions (W × H × D) | 1165 × 405 × 295 mm |
| Outdoor Packing Dimensions (W × H × D) – No Pipe | 960 × 430 × 732 mm |
| Indoor Gross Weight | 17 kg |
| Outdoor Gross Weight | 38 kg |
